Vector Power Conditioner

What is a power conditioner? And how power conditioner will work?


Power conditioners are devices designed to improve the quality of power delivered to electrical equipment. They ensure that the voltage supplied is stable and free from noise and other disturbances. Basic Working Principle.

Power conditioners act as intermediaries between the power source and the equipment. They regulate, filter, and suppress noise in the AC power to ensure that sensitive devices receive clean and stable power. This is crucial for preventing damage and ensuring optimal performance of the equipment.


Importance of Power conditioning


Key Components:

  • Voltage Regulators: These components maintain a constant voltage level, preventing fluctuations that can damage sensitive equipment.
  • Surge Protectors: They protect against voltage spikes by diverting excess voltage away from the connected device.
  • Noise Filters: These filters remove electrical noise caused by other devices, ensuring a clean power supply.
  • Isolation Transformers: they provide electrical isolation between the power source and the equipment, reducing the risk of electrical interference.
  • Transient Voltage Suppression Circuitry: This circuitry protects against transient voltage spicks, which are short-duration surges in voltage.





Benefits of Using Power conditioning


  • Protection Against Power Surges: Prevents damage from sudden spikes in voltage.
  • Voltage Regulation: Ensures a stable voltage supply, which is critical for sensitive equipment.
  • Noise Filtering: Removes unwanted electrical noise, improving the performance of connected devices.
  • Improved Equipment Lifespan: Reduces wear and tear on equipment by providing a stable power supply.



Key Features of our power conditioner


  • Remote control of individual power outlets, turning them ON or OFF as required.
  • Set scheduled times for automatic control of power conditioner outlets.
  • Monitor real-time wattage consumption for efficient energy usage.
  • Equipped with a sensor to track rack/room temperature.
  • Automatically shut down outlets during low or high-voltage cut-offs, offering surge protection.
  • Triggers a buzzer during voltage cut-off events.
  • Integrated noise filter eliminates AC noise from the incoming power, providing a stable output.
  • Ethernet connectivity enables monitoring and control via a web browser.
  • Compatible with 3rd-party control systems for seamless integration.

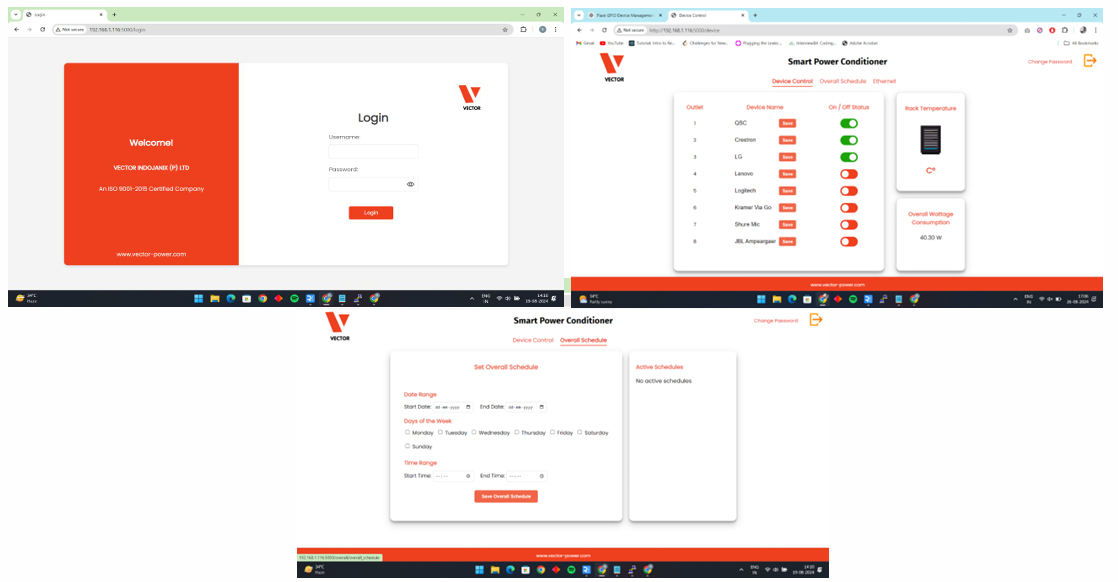

Real-time monitoring images



Our delivery, warranty & Support

  • Delivery within one week from the date of PO.
  • 3-year onsite replacement warranty.


Product Name: Power Conditioner
Model VC-PC-V1

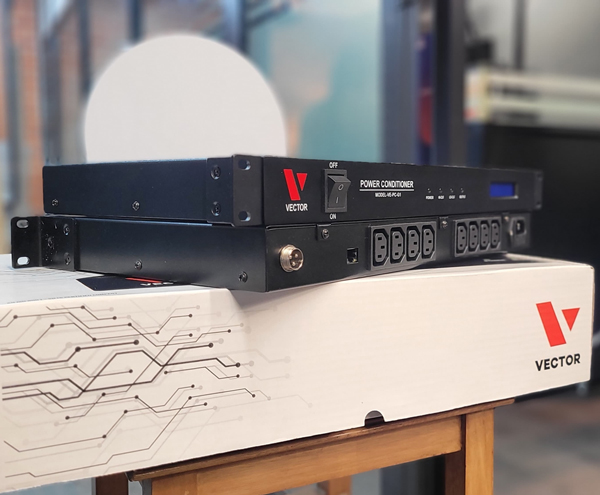

Vector VC-PCpV1 linear Filtering AC Power Conditioner. The Vector VC-PC-V1 is a 1RU rack-mountable power conditioner designed for 220-240VAC systems, offering advanced AC power distribution and filtration with sequential power on/off control wia Ethernet.

Key Features:


  • Noise Reduction: Efficiently filters out electrical noise.
  • Series Multi-Stage Protection (SMP): Ensures uninterrupted operation with zero downtime.
  • Extreme Voltage Shutdown (EVS): Protects against sustained under-voltage (below 160V) or over-voltage (above 250V) conditions.
  • Remote Monitoring: Access and monitor the power conditioner remotely through a web browser via Ethernet.
  • Ethernet Compatibility: Integrates seamlessly with control systems through com mand set integration.
  • Individual Outlet Control: Power on/off each outlet independently.
  • Scheduling Capability: Schedule automatic on/off times for each outlet.
  • Input Monitoring: Keep track of input voltage and current values for the entire power conditioner.
  • Rack Temperature Monitoring: Includes provisions to monitor the temperature inside the rack.
  • Total Capacity: Supports up to 10 Amps total load. (on each Outlets)
  • Warranty: Comes with a 3-years replacement product warranty.


Specifications:


  • AC Voltage Input Range: 160-250VAC, 50Hz
  • Maximum AC Current Rating: 16 Amps
  • Surge and Voltage Protection:
  • Surge Protection: Series Multi-Stage Protection (SNIP) with line-to-neutral spike protection.
  • Undervoltage Protection: Activates at 160VAC.
  • Overvoltage Protection: EVS activates at 250VAC with auto-reset capability.



User Interface:

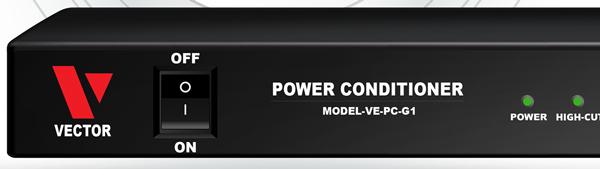

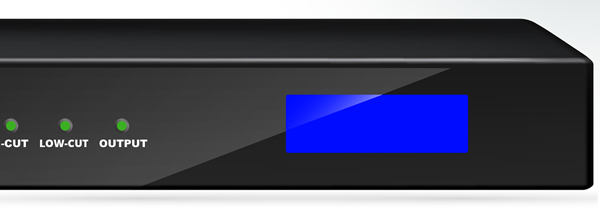

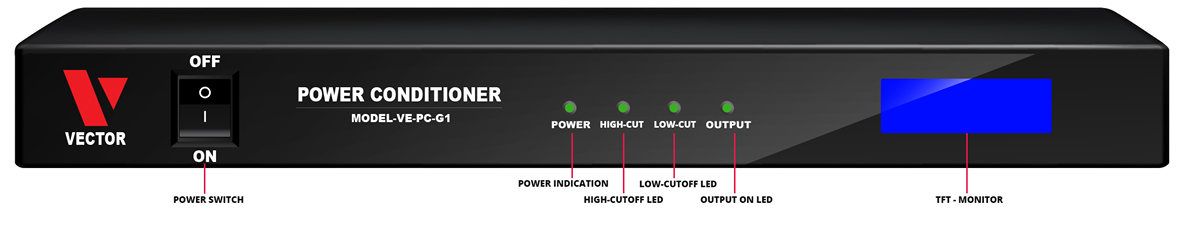

Front Panel:
  • Power Switch: Controls the power to the conditioner.
  • TFT Monitor: Displays incoming voltage, current, and wattage.
  • High Cut Off LED: Indicates activation of high voltage cutoff.
  • Low Cut Off LED: Indicates activation of low voltage cutoff.
  • Output On LED: Shows when the outlets are powered on.

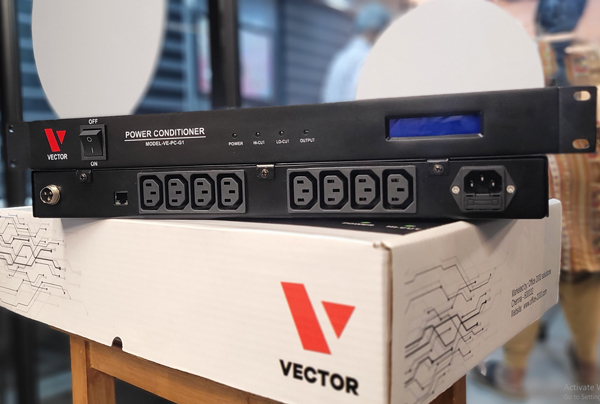

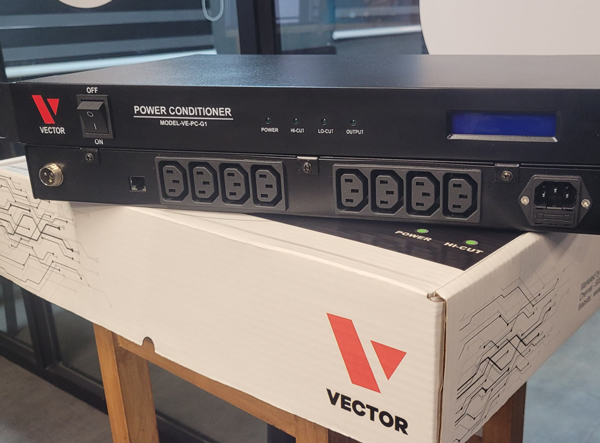

Rear Panel:
  • Ethernet Port: IP control via Telnet and HTTP.
  • Temperature Sensor: Monitors rack temperature.
  • AC Sockets — 8 qty (each 10 Amps) 2300Watts
  • Line Input: 230V, 50Hz.
